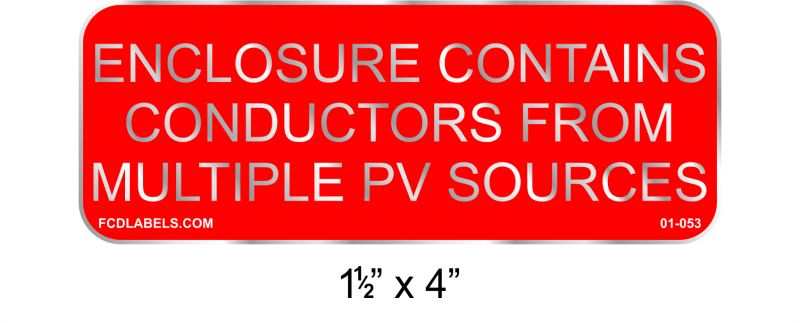

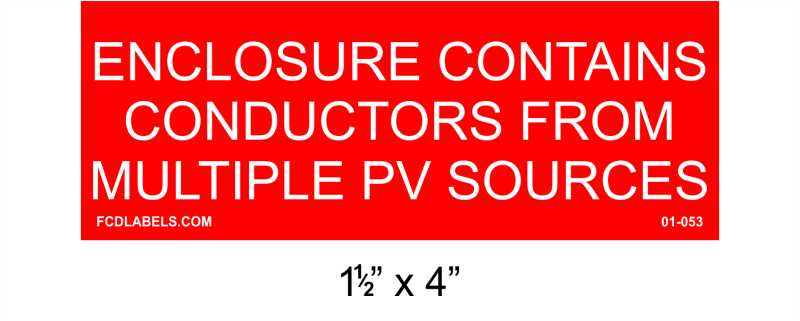

1.5" x 4" | Conductors from multiple PV sources | Solar Placards
1.5" x 4" | Conductors from multiple PV sources | Solar Signs

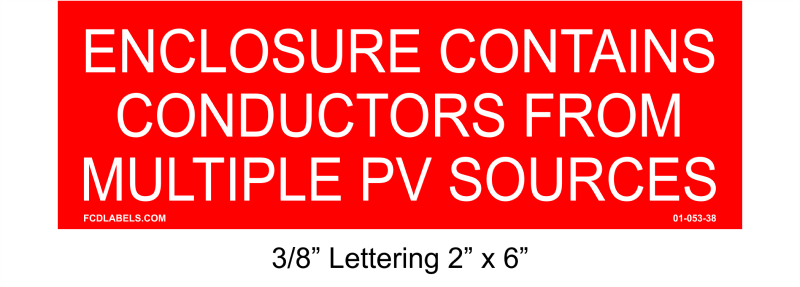

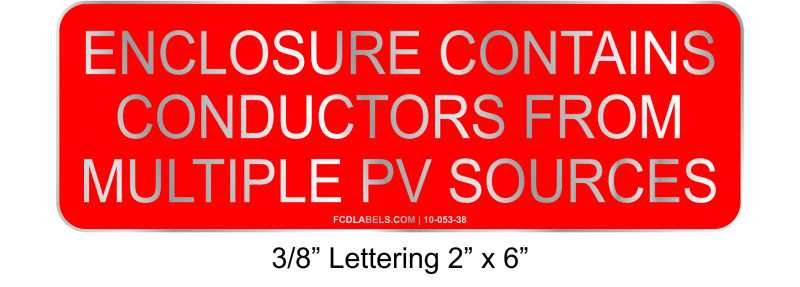

3/8" Letters 2" x 6" | Conductors from multiple PV sources | Solar Placards
3/8" Letters 2" x 6" | Conductors from multiple PV sources | Solar Signs
1.5" x 4" | Conductors from multiple PV sources | Solar Placards
1.5" x 4" | Conductors from multiple PV sources | Solar Signs
3/8" Letters 2" x 6" | Conductors from multiple PV sources | Solar Placards
3/8" Letters 2" x 6" | Conductors from multiple PV sources | Solar Signs

01-053

$4.40
By FCDLabels
Material & Size
Minus Plus

ENCLOSURE CONTAINS CONDUCTORS FROM MULTIPLE PV SOURCES

1.5" x 4" - Solar Placards

Per NEC 2014 690.31(B) PV source circuits and PV output circuits shall not be contained in the same raceway, cable tray, outlet box, junction box, or similar fitting as conductors, feeders, branch circuits of other non-PV systems, or inverter output circuits, unless the conductors of the different systems are separated by a partition. PV system conductors shall be identified and grouped as required by 690.31(B)(1) through (4). The means of identification shall be permitted by separate color coding, marking tape, tagging, or other approved means.

(3) CONDUCTORS OF MULTIPLE SYSTEMS. Where the conductors of more than one PV system occupy the same junction box, raceway, or equipment, the conductors of each system shall be identified at all termination, connection, and splice points. Exception: Where the identification of the conductors is evident by spacing or arrangement, further identification shall not be required.

*NEC code reference is for information only. Refer to the NEC 2014 guide for complete descriptions.

OK for exposure to: Direct Sunlight, Rain, Snow, Ice, Fog and Salt Air.
Temperature Rating: for use between -40°F to 176°F
