2" x 5" | Equipped with Rapid Shutdown | Photovoltaic System Labels

02-019

$2.20
By FCDLabels

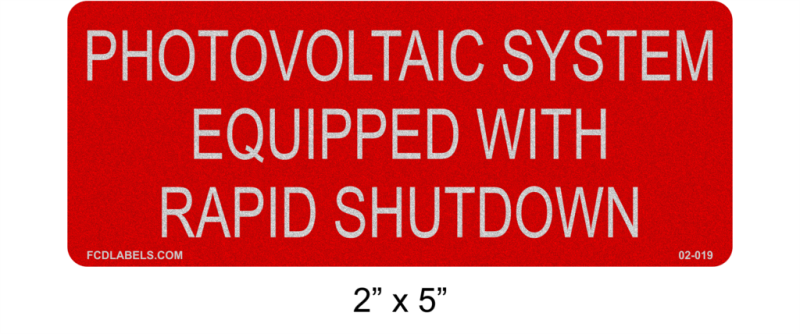

Photovoltaic System Equipped with rapid shutdown

2" x 5" - Photovoltaic System Labels

NEC 690.56(C) Facilities with Rapid Shutdown (C) Buildings or structures with both utility service and a PV system, complying with 690.12. The plaque or directory shall be reflective, with all letters capitalized and having a minimum height of 9.5mm (3/8 in.) in white on red background & shall have a permanent plaque or directory including the following wording

2" x 5" | Equipped with Rapid Shutdown | Photovoltaic System Label NEC Labeling Requirements

  • Premium outdoor rated vinyl label
  • 2.75-mil Vinyl
  • 7 Year Permanent Adhesive
  • UL certified for UL 969 (USA)
  • CSA certified for C22.2 No. 0.15 (Canada)

*NEC code reference is for information only. Refer to the NEC 2011 guide for complete descriptions.

OK for exposure to: Extreme Heat, Cold, Dry and Highly Humid Climate Conditions. Temperature Rating: for use between -40°F to +176°F
