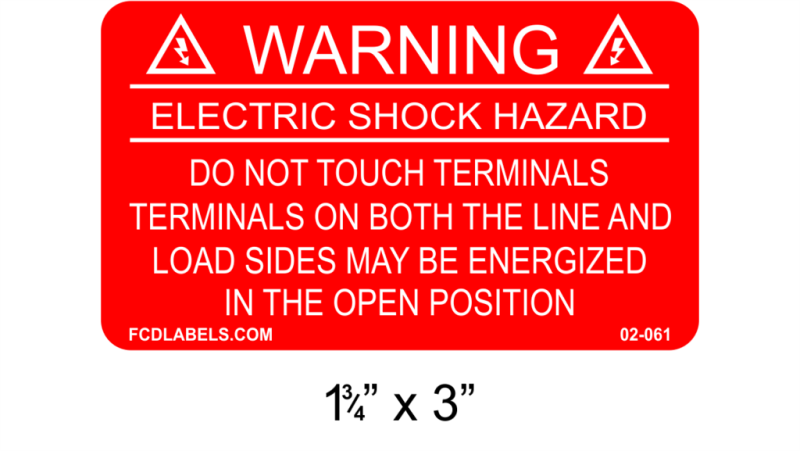

1.75" x 3" | Do Not Touch Terminals | Solar Warning Labels

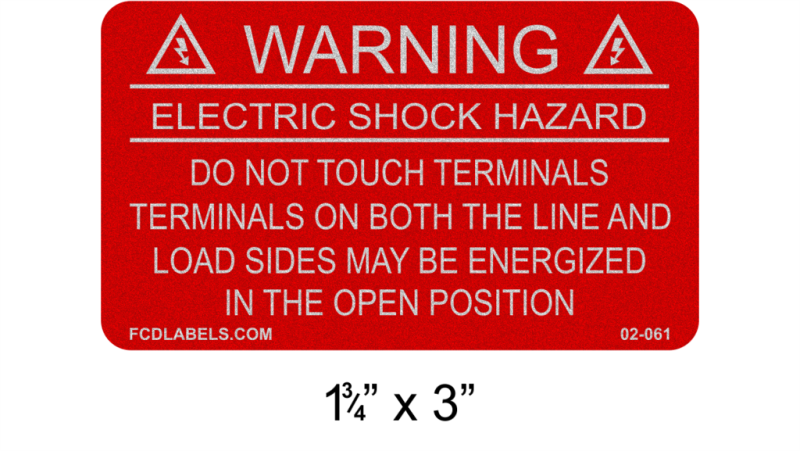

1.75" x 3" Reflective | Do Not Touch Terminals | Solar Warning Labels
1.75" x 3" | Do Not Touch Terminals | Solar Warning Labels
1.75" x 3" Reflective | Do Not Touch Terminals | Solar Warning Labels

02-061

$0.60
By FCDLabels
Material & Size
Minus Plus

Warning electric shock hazard. Do not touch terminals, terminals on both the line load sides may be energized in the open position

1.75" x 3" -  Solar Warning Labels

Per NEC 690.17(4) Switch or Circuit Breaker, place on AC Disconnect, Service Panel and any sub-panels that are back fed by PV system.

*NEC 690.17(4) Having an interrupting rating sufficient for the nominal circuit voltage and the current that is available at the line terminals of the equipment. Where all terminals of the disconnecting means may be energized in the open position, a warning sigh shall be mounted on or adjacent to the disconnecting means. The sign shall be clearly legible and have the following works or equivalent

  • Premium outdoor rated vinyl label
  • 2.75-mil Vinyl
  • 7 Year Permanent Adhesive
  • UL certified for UL 969 (USA)
  • CSA certified for C22.2 No. 0.15 (Canada)

Exception: A connector shall be permitted to be used as an ac or a dc disconnecting means, provided that it complies with the requirements of 690.33 and is listed and identified for the use.

*NEC code reference is for information only. Refer to the NEC 2011 guide for complete descriptions.

OK for exposure to: Extreme Heat, Cold, Dry and Highly Humid Climate Conditions. Temperature Rating: for use between -40°F to +176°F
